Yamaha YZF-R1 2013
With back-to-back Supersbike Championships, the MotoGP-inspired R1 is one of the most innovative open-class sportbikes in the world.
MotoGP, the highest form of motorcycle road racing in the world, is where many of the high performance features found ont he 2013 Yamaha R1 have been developed. From the 7 position traction control system to the revolutionary crossplane crank design with an uneven firing order, the 2013 R1 is the most advanced sport bike Yamaha has ever produced. Powered by a 998cc in-line 4 cylinder engine, the Yamaha R1 offers and incredible high rpm rush, plus the rich torque of a twin.

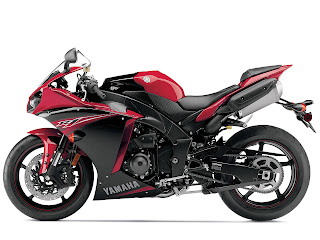

2013 Yamaha YZF-R1
USA Specifications/Technical Details
US MSRP Price: $14,490 (Team Yamaha Blue/White); $14,290 (Matte Gray); $14,290 (Rapid Red/Raven)
Type 998cc, liquid-cooled 4-stroke DOHC 16 valves (titanium intake valves)
Bore x Stroke 78.0mm X 52.2mm
Compression Ratio 12.7:1
Fuel Delivery Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed w/multiplate slipper clutch
Final Drive #530 O-ring chain
Suspension / Front 43mm inverted fork; fully adjustable, 4.7-in travel
Suspension / Rear Single shock w/piggyback reservoir; 4-way adjustable, 4.7-in travel
Brakes / Front Dual 310mm disc; radial-mount forged 6-piston calipers
Brakes / Rear 220mm disc; single-piston caliper
Tires / Front 120/70ZR17M/C 58W
Tires / Rear 190/55ZR17M/C 75W
Length 81.5 in
Width 28.1 in
Height 44.5 in
Seat Height 32.9 in
Wheelbase 55.7 in
Rake (Caster Angle) 24.0°
Trail 4.0 in
Fuel Capacity 4.8 gal
Fuel Economy** 33 mpg
Wet Weight*** 454 lb
Primary Reduction Ratio 65/43 (1.512)
Secondary Reduction Ratio 47/17 (2.765)
Gear Ratio - 1st Gear 38/15 (2.533)
Gear Ratio - 2nd Gear 33/16 (2.063)
Gear Ratio - 3rd Gear 37/21 (1.762)
Gear Ratio - 4th Gear 35/23 (1.522)
Gear Ratio - 5th Gear 30/22 (1.364)
Gear Ratio - 6th Gear 33/26 (1.269)
Warranty 1 Year (Limited Factory Warranty)
* Prices and specifications subject to change without notice. Please read your Owner's Manual and all labels before operation.
** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha. Your actual mileage will vary depending on road
conditions, how you ride and maintain your vehicle, accessories, cargo, and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel.
2013 Yamaha YZF-R1
Canada MSRP Price: $14,999 CDN
Engine Liquid-cooled, DOHC, 16-valve, in-line four
Bore and Stroke 78 x 52.2mm
Compression Ratio 12.7:1
Maximum Torque 11.7kg-m (84.6ft-lb) @ 10,000 rpm
Engine Management YCC-T, YCC-I, D-Mode & Traction Control
Fuel Delivery Mikuni 45mm throttle body FI
Estimated Fuel Consumption* 14kpl / 40mpg (Imp.)
Lubrication Wet sump
Ignition / Starting TCI / Electric
Final Drive "O" ring chain
Suspension (Front) Fully adj. 43mm inverted fork
Suspension (Rear) Fully adj. Link Monocross
Brakes (Front) Dual 310mm discs
Brakes (Rear) 220mm disc
Tires (Front) 120/70ZR17
Tires (Rear) 190/55ZR17
Length 2,070mm (81.5")
Width 715mm (28.1")
Height 1,130mm (44.5")
Wheelbase 1,415mm (55.7")
Rake / Trail 24° / 102mm
Ground Clearance 135mm (5.3")
Seat Height 835mm (32.9")
Fuel Capacity 18 litres (4 Imp. gal.)
Wet Weight 206kg (454lb)
Colour(s) Yamaha Blue
Matte Metallic Gray
± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.
Specifications, appearance, and price of product are subject to change without notice.
* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.
2013 Yamaha YZF-R1 Review
The Back to Back Superbike Champion!
With back to back Superbike Championships and packed with MotoGP technology, the 2013 YZF-R1 is the most advanced bike ont he planet. And unlike anything else. That's because it's the world's first motorcycle with a crossplane crankshaft. Resulting in incredibly smooth power delivery and outrageous torque for a rush like never before. From the track to the street, the R1 truly is "the 1."
On the road or track the R1 rewards the rider like no other large-capacity supersport machine.
Power is about control and the R1 engine design, D-Modes, Traction Control and chassis design provide excellent controllability in a variety of conditions. The feeling of total confidence in your machine's abilities is one of the most important qualities that any bike can offer, and creates a special bond between the rider and machine, enabling the owner to exploit the enormous potential of this outstanding motorcycle.
2013 Yamaha YZF-R1 Key Features
Fuel Consumption ± 14kpl/40mpg (Imp)
Crossplane crank design with uneven firing order
7-position traction control
The YZF-R1 benefits from MotoGP® technology – a seven-level Traction Control System. The system has been developed so the rider does not feel any unnatural or harsh intervention from the system. In addition, traction control can aid in reducing tire wear due to less wheel spin. Coupled with the three level D-Mode electronic throttle response control, riders have 21 different choices available to tailor the YZF-R1 to their riding preference.
This R1 keeps all the technological superiorities developed for its predecessor: YCC-T™ (Yamaha Chip Controlled Throttle) is MotoGP® inspired fly-by-wire technology used to deliver instant throttle response. YCC-I® is Yamaha Chip Controlled Intake which is a variable intake system that broadens the spread of power. The fuel injection system provides optimum air/fuel mixtures for maximum power and smooth throttle response.
In keeping with this machine’s exceptional cornering ability and crisp handling, the aluminum frame has been designed to offer exceptional rigidity balance. The rear frame is lightweight Controlled-Fill die-cast magnesium, contributing the optimum mass
centralization. Suspension includes YHSJ (Yamaha Hydraulic Systems Japan) front forks which use one of the tricks developed for our winning MotoGP® bikes: independent damping. The left fork handles compression damping and the right side handles the
rebound damping. And the rear shock adopts bottom linkage for optimum suspension characteristics.
The sound on the YZF-R1 is unlike any other inlinefour cylinder production supersport. The precise and throaty pulse of the exhaust note will have riders enthused every time the throttle is opened.
2013 Yamaha YZF-R1 Features and Benefits
• Ultra-lightweight, compact, 998cc, DOHC, 16-valve, liquid-cooled, 40 degree inclined, in-line four-cylinder engine with "crossplane" style crankshaft.
• The key components of this cutting edge engine design are the "crossplane" crankshaft and an uneven firing order. Both of these features are used on Yamaha's championship winning M1 MotoGP racer. Please note … this is not a "big bang" engine. The R1 departs from the norm for in-line 4 cylinder engines and the 180 degree alignment of the crank pins (where the connecting rods attach to the crankshaft), and locates the center two rods at a 90 degree plane from the outer cylinders. This means instead of the crank pins aligned on the same plane (a straight line drawn through the center of the crankshaft), they align on 2 planes in the form of a cross ... or "crossplane". Working in conjunction with the crossplane crank is an uneven firing order. A traditional in-line 4 cylinder's firing order is normally 1,2,4,3 with a 180 degree interval. This R1 engine fires 1,3,2,4 cylinders and the firing intervals are uneven at 270 / 180/ 90 /180 degrees. What all this means to the rider is the most linear torque possible and amazing throttle control. This engine design allows a whole new level of rider - machine communication. One of the most important benefits is the outstanding cornering performance that increased engine control allows.
• The engineering goal for the R1 is controllability … not just an increase in horsepower. If that was the case, we could have simply increased the power output of the existing engine design resulting in a peaky, hard to use power band.
• The 4-valve cylinder head design features compact combustion chambers that utilize lightweight, trick, titanium valves on the intake side. The 4-valve design maximizes breathing efficiency and overall engine performance.
• The titanium intake valves are 31mm in diameter while the steel exhaust valves are 25mm in diameter. Lightweight yet super strong VX alloy valve springs control valve movement.
• Steep valve angles, 11.5 degrees on the intake side and 12.5 degrees on the exhaust produce a compact combustion chamber.
• The lightweight titanium intake valves reduce the reciprocating weight of the intake valves allowing for higher rpms without the concern of valve float. The use of lightweight "Ti" valves has allowed the engineers at Yamaha to use a 4-valve format. In the past, the use of 5 smaller valves allowed a higher rpm limit since each of the "smaller" valves was relatively light. The use of light weight titanium now means the engineers no longer have to use the 5-valve design to achieve the same high rpms.
• Combustion chambers have been optimized for maximum engine performance. The compression ratio is 12.7:1.
• Compact automatic cam chain tensioner reduces both maintenance and mechanical engine noise.
• Short skirt, forged aluminium pistons offer light weight, fast throttle response and great reliability.
• Crossplane crankshaft features 36mm journals for increased strength, while the inertial moment of the crank has been increased by 20% versus the last generation R1.
• Connecting rods are carburized and use a nut less design. The lower end "cap" of the rod is made from the same piece of material as the upper portion and is cracked away in a process known as "fracture splitting". This process aids true big end roundness and greater precision in con rod dimensions.
• Ceramic composite cylinder "bores" are a "liner less" design with the ceramic coating applied directly on the aluminium block to ensure uniform heat dissipation for consistent power delivery, reduced oil consumption, reduced friction and reduced weight.
• Closed deck cylinder design allows the cylinders to be spaced more closely together, allowing for a narrower engine.
• The cylinder block is a stand-alone piece (not integrated into the upper crank case). The benefit is reduced weight and a less tall engine which lowers the centre of gravity.
• A "coupling force balancer" is used to quell engine vibration for excellent rider comfort.
• Compact ACM (alternator) is mounted directly to the crankshaft. The compact ACM uses rare earth magnets which produce more power for a given size than conventional magnets, therefore reducing size and weight.
• Mikuni fuel injection system features twin injectors (one set of primary & one set of secondary injectors). This type of twin injector system is also used on our M1 MotoGP race bike and the R6. One set of injectors (primary) are located in the 45mm throttle bodies while the secondary injectors are located in the air box very near the computer controlled intake funnels. The primary injectors utilize 4 spray holes to maximize the fuel atomization process. The secondary injectors, located inside the air box, begin to function at mid rpms onwards to supply more fuel as required.
• The F.I. system features separate dual track TPS (throttle position sensor) and APS (accelerator position sensor) sensors
• An oxygen sensor is fitted into the exhaust collector making this a "closed loop" type FI system, which feeds back info to the ECU so adjustments can be constantly made to the fuel-air mixture for improved performance and reduced emissions.
• The benefits of fuel injection include excellent throttle response, great fuel economy, reduced emissions, stable idling and no choke to fuss with during start up.
• Maintenance-free transistor controlled ignition (TCI) provides a hot spark for sure starts and strong engine performance.
• The fuel injection's lightweight Electronic Control Unit (ECU) utilizes a powerful 32-bit processor for fast control of the injection process. The compact design also reduces weight.
• YCC-I or Yamaha's Chip Controlled Intake means the intake funnels / stacks vary in length (2 positions) depending on engine rpm. An electronic servo motor varies the funnel length from the tall position at low to mid rpms to the shorter setting for improved high rpm power. The transition rpm between the 2 lengths is approx. 9,400 rpms. The revolutionary YCC-I provides the best of both worlds …solid low rpm torque and power combined with an amazing high rpm rush. It takes only 0.3 of a second for the funnels to move from the tall to the short position.
• Yamaha's exclusive YCC-I electric-control servo motor-driven variable intake funnel system is a world's 1st on a production motorcycle and works in conjunction with Yamaha's fly-by-wire technology and FI System.
• Yamaha Chip Control Throttle (YCC-T) electronically controls the throttle valves for outstanding response and improved controllability at all rpms. The YCC-T is used to provide even more control of the intake air volume for smoother torque character. Similar to the R6 design, the YCC-T features 3 - ECU's inside the main ECU to control ignition, fuel injection and the YCC-T. This special ECU is capable of responding to changes at a speed of 1000th of a second.
• The rider can "mechanically close" the throttles by simply closing the throttle twist grip.
• 6-mode traction control system features an off mode as well (for a total of 7 positions). This MotoGP derived system limits or eliminates rear wheel slippage or slide based on the chosen mode. This system uses front and rear wheel sensors to detect slip and then adjusts / regulates via the ECU the throttle opening (YCC-T), fuel injection and ignition timing to control slip. The system is activated using a switch on the LHS switch gear. Each mode offers a different level of slip control.
• Long life Iridium twin electrode spark plugs are used.
• Compact close-ratio 6-speed transmission features optimized gear ratios for maximum performance. The "stacked" 3-axis gearbox / clutch design stacks input/output shafts to create a low center of gravity and keeps overall engine size shorter front to back. As a result, the stacked design gives the engineers the freedom to place the engine in the "sweet spot" of the frame for optimum weight balance for awesome handling.
• The slipper or back limiter clutch assembly reduces rear wheel hop when making hard down shifts when under hard braking. Key benefit is reduced lap times and smoother control when riding aggressively during a race or track day.
• A multi plate clutch is used, utilizing coil springs and paper based fibre plates.
• "Ram Air" system "force feeds" outside air via dual ducts located beside the projector headlights into the intake system. As speed increases the air velocity in the system increases and pressurizes the air box. This "force fed" air helps the engine develop maximum power.
• Computer optimized large capacity air box maximizes performance. A viscous type, high flow air filter is utilized.
• 4 into 2 into 1 into 2 titanium exhaust system maximizes power output, reduces weight and improves aerodynamics. The dual under seat mufflers provide an aggressive sound. This system contains a 3-way honeycomb catalyzer and an oxygen sensor. The catalytic converter reduces harmful CO and HC exhaust emissions while the oxygen sensor provides feedback to the ECU to maintain optimum fuel/air mixture at all times.
• Dual shorty, large diameter triangle shaped mufflers are a "single expansion" type that create a throaty exhaust note and help emphasize engine character. New muffler end caps improve styling. The exhaust note is much different than on previous R1 models due to the crossplane crank and uneven firing order … it sounds very similar to Yamaha's M1 MotoGP race bike.
• Compact, high-efficiency curved radiator features dual ring-type fans for maximum cooling efficiency. This curved rad and twin fan design produces more airflow than conventional flat designs to maintain optimum engine temperatures for consistent power output.
• Large liquid-cooled oil cooler maintains stable lubricant temperatures for extended engine life. Convenient spin-on oil filter.
• Convenient clutch cover sight glass ensures easy oil level inspection.
• High performance direct ignition coils (ignition coil is built into the spark plug cap) reduce weight while iridium spark plugs and high-output magneto deliver increased spark energy.
• Yamaha D-Mode variable throttle control enables the rider to adjust the performance characteristics of the engine based on riding preferences or conditions. Standard mode emphasises the very linear throttle and torque feel of the engine. The A mode allows the rider to enjoy sportier engine performance in the low to mid rpms. While the B Mode reduces the power response for riding situations that require softer power characteristics. The switch mechanism is located on the RHS handle bar switch gear.
Chassis and Suspension:
• Aluminium Deltabox frame has been designed to offer an optimized rigidity balance to maximize handling performance. This frame is very rigid or stiff at the head pipe, engine mounts and swingarm pivot point. In other areas, material has been carefully removed to allow "tuned flex". Finished in black, this frame boasts a compact 1415mm (55.7") wheelbase. The swingarm pivot location has been optimized to minimize the chain tension effect under hard acceleration, providing more stable handling. The engine is a fully stressed chassis member to maximize handling. Stability, a key to great handling, is unsurpassed while the ability to hold a line under hard acceleration is excellent. This frame features a mix of gravity cast (head stock & front engine mounts & swingarm pivot area), CF (controlled filling) die cast (outer tank rails) and aluminium panels (inner tank rails). Each of these aluminium parts has different flex characteristics in order to provide the rigidity balance the engineers desired.
• Detachable magnesium CF die cast rear subframe reduces weight. The detachable design allows rear shock access and is less costly to repair if accidentally damaged.
• Extra-long, lightweight aluminium "truss-type" swingarm provides great torsional rigidity for class leading handling, agility and manoeuvrability. This lightweight swingarm is made up of cast aluminium and CF die cast parts. The distance between the swingarm pivot and the rear axle has been optimized (597 mm) for excellent "turn-in" abilities and rear wheel traction.
• This Deltabox chassis offers an incredible 56 degree lean angle.
• Fully adjustable 43mm inverted fork features independent left and right damping system. The compression damping is adjusted via the left fork leg, while rebound damping is adjusted on the right fork leg. This system simplifies the flow of oil through the fork and minimizes oil cavitation (aeration of the oil) for more stable suspension performance. Adjustments include 5-way spring preload, 25-way rebound and 25-way compression damping. Front wheel travel is 120mm (4.7"). The thickness of the inner fork tubes and the shape of the outer tubes have been optimized. The adjustable design allows the rider to tailor suspension settings to match rider weight and road /track conditions to maximize handling and suspension performance.
• MotoGP M1 inspired, gravity cast aluminum upper triple clamp reduces weight and improves styling.
• Bottom link Monocross rear suspension utilizes a fully adjustable piggyback-style rear shock. Adjustments include 16-way spring preload, 18-way rebound and 20-way slow speed compression damping and 4-way high speed compression damping. The bottom link design lowers the centre of gravity for excellent handling. This is a rising rate or progressive system. The adjustable design allows the rider to tailor suspension settings to match rider weight and road /track conditions to maximize handling and suspension performance. Rear wheel travel is 120mm (4.7").
• Radial mount 6-piston calipers squeeze fully floating 310mm dual front rotors. The result is incredible braking performance with excellent control and lever feedback.
• Brembo radial pump master cylinder with 16mm piston is a direct GP race innovation. The lever is adjustable for various hand sizes.
• Single piston slide-type Nissin rear caliper squeezes a lightweight 220mm rotor.
• Rugged yet lightweight 5-spoke mag wheels front and rear. The wheels utilize hollow "spokes" to reduce unsprung weight for superior handling. Front rim size is a MT3.50 x 17 while the rear is MT6.00 x17.
• Premium sport radial tires front and rear.
• 18 litre fuel tank provides excellent knee grip for hard braking and great rider manoeuvrability. The elongated shape helps to centralize mass and reduces the variance in riding feel as the fuel load (weight) changes.
• Aggressive front fairing offers excellent aerodynamics and features LED position lights.
• Race inspired lightweight instrumentation includes an analog tach plus digital speedo, dual tripmeters, clock, coolant temperature and fuel trip meter. This console also features adjustable back lighting, adjustable shift light and a low fuel warning light. Other key features include a gear position indicator, traction control indicator, engine mode indicator integrated stop watch, lap timer with split time mode and an air intake temperature display. The lap timer is controlled by the starter switch button for added convenience and ease of use.
• LED taillight reduces weight and power consumption while providing a brilliant eye catching light. The lens is white while the LEDs are red.
• Adjustable footrests can be raised 15mm upward and 3mm backward if desired.
• Lightweight aluminum rider footrests.
• Immobilizer ignition system is designed to reduce the possibility of "ride away" theft. This system must recognize the "coded ignition key" in order for the unit to start. If the immobilizer ignition does not recognize the key (or a thief's screwdriver or other type of "jimmy tool") the bike will not start even if the ignition is turned or forced into the on position. If the system does not recognize the coded chip in the ignition key, it will not allow the ignition system, fuel pump or starter motor to function.
• Windshield features a "screw less" design for a cleaner, more trick appearance.
• Slim design rear tail section.
• Extensive use of hollow bolts and lightweight fasteners help trim overall weight.
• Heavy-duty 50 series "O" ring drive chain.
• New design 17 tooth drive sprocket reduces chain noise.
• Low maintenance, lightweight, sealed battery.
• Convenient fold out under seat bungee cord fastening straps.
The YZF-R1 offers a significant level of power and performance. It is not intended for novice or inexperienced riders.
