Gambar Motor 2011 SUZUKI GSX-R600

Gambar Motor SUZUKI

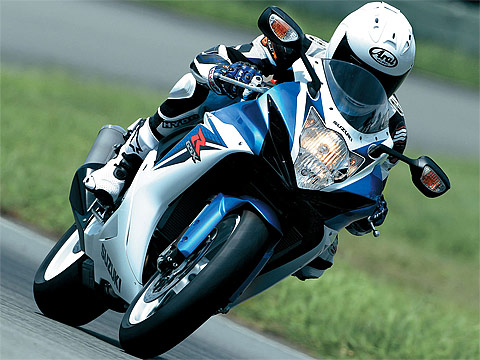

2011 SUZUKI GSX-R600



2011 SUZUKI GSX-R600

Click Thumbnail to download (size 1600 x 1200 pixels)






mpressive performance, exceptional handling and remarkable modern sport-styling prove the all-new redesigned 2011 GSX-R600 is a class-leading sport bike worthy of its race-winning GSX-R heritage. The GSX-R600´s responsive and agile ride results from a new lightweight chassis with a compact wheelbase and race-developed suspension.

Specifications

Model:    Suzuki GSX-R600
Year:    2011
Category:    Sport

Engine and transmission
Displacement:    599.00 ccm (36.55 cubic inches)
Engine type:    In-line four, two-stroke
Engine details:    Hot-peened conrods, chrome-nitride-coated upper compression and oil control rings, and pentagonal ventilation holes
Power:    124.04 HP (90.5 kW)) @ 13500 RPM
Torque:    69.60 Nm (7.1 kgf-m or 51.3 ft.lbs) @ 11500 RPM
Compression:    12.9:1
Bore x stroke:    67.0 x 42.5 mm (2.6 x 1.7 inches)
Valves per cylinder:    4
Fuel system:    Injection
Fuel control:    DOHC
Ignition:    Electronic ignition (Transistorized)
Lubrication system:    Wet sump
Cooling system:    Liquid
Gearbox:    6-speed

Transmission type,
final drive:    Chain
Driveline:    RK525SMOZ8, 114 links

Chassis, suspension, brakes and wheels
Frame type:    Twin-spar aluminum cradle frame
Rake (fork angle):    23.9°
Trail:    97 mm (3.8 inches)
Front suspension:    Showa Big Piston front-Fork
Front suspension travel:    130 mm (5.1 inches)
Rear suspension:    Link type, coil spring, oil damped
Rear suspension travel:    136 mm (5.4 inches)
Front tyre dimensions:    120/70-ZR17
Rear tyre dimensions:    180/55-ZR17
Front brakes:    Double disc. Bremo, 4-piston
Front brakes diameter:    310 mm (12.2 inches)
Rear brakes:    Single disc. Bremo
Rear brakes diameter:    220 mm (8.7 inches)

Physical measures and capacities
Weight incl. oil, gas, etc:    187.0 kg (412.3 pounds)
Seat height:    810 mm (31.9 inches) If adjustable, lowest setting.
Overall height:    1,135 mm (44.7 inches)
Overall length:    2,030 mm (79.9 inches)
Overall width:    710 mm (28.0 inches)
Ground clearance:    130 mm (5.1 inches)
Wheelbase:    1,385 mm (54.5 inches)
Fuel capacity:    17.00 litres (4.49 gallons)

Other specifications
Starter:    Electric
Factory warranty:    12 Month Limited Warranty
Color options:    White, Blue/White
